Young OCS-2000

Replacement Oil Cooler

MODEL NUMBER

Part Number: OCS-2000
Replaced By: OCA-2000 One Pass Three Phase
Exact Dimensional Interchange

Motor & Materials:


Three Phase Motor: OCA-2000 One Pass Three Phase
RPM: 1175

Ratings:

Maximum Working Pressure: 250 PSI
Maximum Working Temperature: 350 F

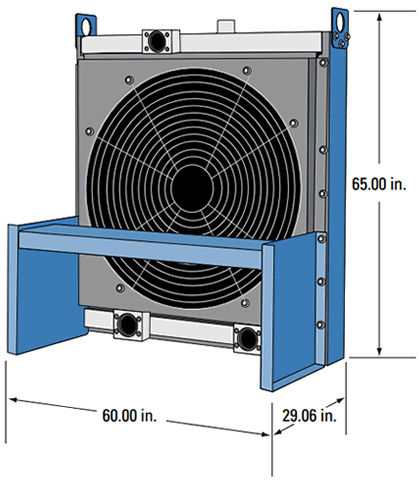

Dimensions:

Height: 65 in.
Width: 60 in.
Depth: 29.06 in.
Weight: 1223 Lbs.

Features:

Steel Framing
Extruded T-Bar Brazed Aluminum Core Design
Enclosed Fan Cooled Units
Composite Fan Blades with Cast Aluminum Hub
Aluminum Female SAE Connections
TEFC Motors


To order an aftermarket replacement Young OCS-2000
please contact us: 1-888-226-8522
OCS-2000

OCS-2000 is a Young Touchstone radiator replaced by part number OCA-2000 One Pass Three Phase, ruggedly constructed, light weight, low fouling extruded core designed oil cooler for the following applications: Hydraulic Circuits, Lube Oil Cooling, Torque Converters, Machine Tool Cooling, Process Cooling, Marine Transmissions, and Much More.

Note: Picture is an image of a stock unit and may not accurately represent the exact unit shown on this page.
OCS-2000 Replacements to Young OCS-2000
Series Dimensions

Quotes, Engineering & Ordering Information: Please contact us: 1-805-484-2992
